THÔNG TIN SẢN PHẨM

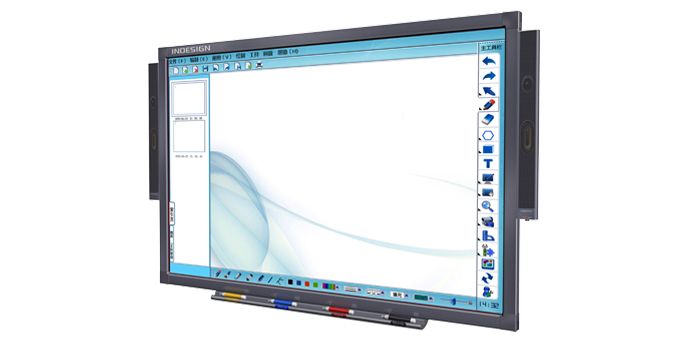

  Bảng tương tác (All-in-one)

Giải pháp không dây tiết kiệm không gian. Bảng tương tác được tích hợp module máy tính mini có cấu hình cao, tích hợp bộ speakers và các thiết bị không dây khác.
Tạo lên môi trường làm việc chuyên nghiệp.


Chi Tiết Sản Phẩm

Accessories Specifications
PC Module
CPU                                                                              Intel   N270   1.6GHz
EMS Memoty                                                               2G DDRll Memory bank
Hard Disk                                                                    160G
Network Card                                                              Internal wireless network card IEE802.11b+g,Ethernet adaptive card
Display core                                                                VIA/S3G UniChrome Pro II IGP
Standard interface                                                     USB2.0 port*2,VGA port,RJ45,Binaural Headset Jack
Electric Power Source                                               DC20V port

Wireless Module
            Item                           Specification                      Min                     Type                   Max
AC input Voltage                 Single phase                   100V              110V/220V             240V
AC input Current                 Single phase
AC input Frequency            Single phase                   47Hz              50Hz/60Hz             63Hz
Working Voltage                          DC                             11.5V                    12V                  12.5V
Working Current                          DC                            300mA
Working Frequence               2400MHz                     2480MHz
Frequency Space                          6
Transmission Distance        Clearing                         50m
Working Enviroment                   -20℃                          50℃

Speaker
       Item                                                                    Parameter
Audiotrack                                                                      2.0
Type                                                                           Conbined
Speaker Configuration                                                2*2
Working Voltage                                                        DC20V
Power                                                                            4*5W
Peak Power                                                                  50W
Directivity                                                                  Right Ahead
Frequency Response                                           350~20KHZ
Sensitivity                                                                      87db
Unitary Impedance                                                       8Ω
Sound                                                                        Adjustable



Module Pictures

                 Wireless Module                                                                   Speakers

                     Built-in PC



Advantages
1. Saving the space greatly.
2. Decreasing the troublesome of installing equipment.
3. Adopting one-click operating method, which starts all equipments.
4. It is convenient to move the board, at the same time it also moves the pc, audio box and wireless equipment.
5. With the function of audio. You needn’t deploy the audio box. The board itself is a audio box, and the sound effect is excellent.
6. Built-in PC. It has the function of pc, small volume and light weight. Even though it is integrated with the board, it won’t increase the volume and weight. And it is low consumption and low noise.
7. Built-in wireless equipment.
8. Hiding all lines behind the board. The overall is quite beautiful.
9. The integrated pc, audio box and wireless equipment are compatible to all size of board.
10. You needn’t purchase the separate parts so that you can reduce the cost greatly.
Of course, traditional whiteboard can realize the same function with all in one machine when it is connected to PC, audio box and wireless equipment. But we will find that too many lines which are big and small, long or short and the parts are also scattered and occupy much space, which will affect the whole equipment’s aesthetic. But all in one machine is different from the last one. You won’t see many lines. Because all the machine are connected together and you just need one power cord and open the pc, then you can use it.

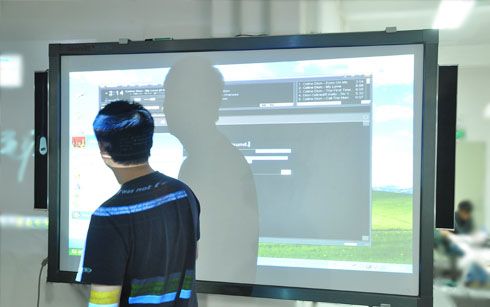

Application
